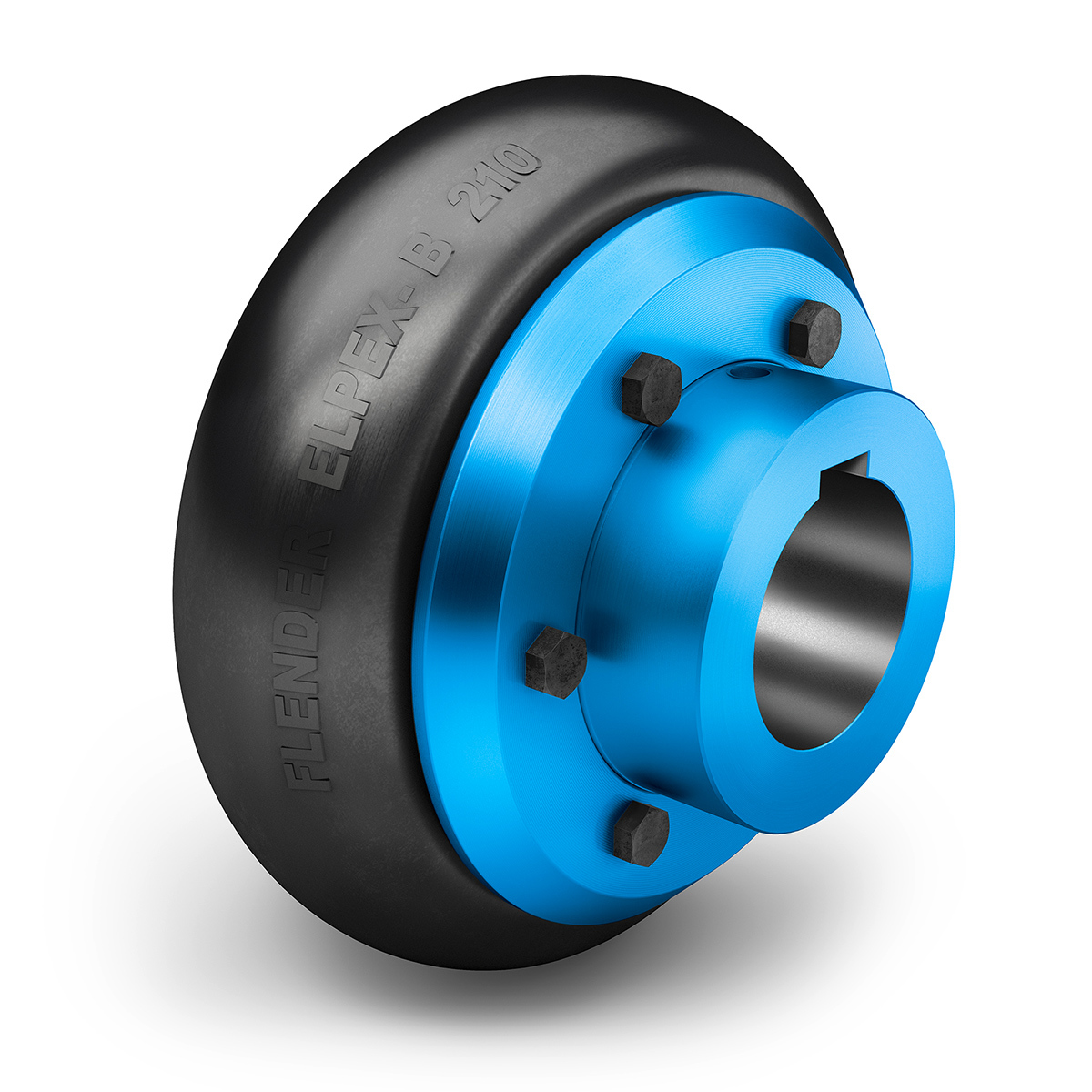

Highly flexible, backlash-free tire coupling
Nominal torque range from TKN = 24 Nm up to 14,500 Nm with 15 sizes
Temperature range: from –50 °C to +50 °C for natural rubber materials, from
–15 °C to +70 °C for chloroprene rubber
​

Flexible and adaptable

Highly flexible ELPEX-B® couplings transmit torques without circumferential backlash in machines with non-uniform torque characteristics. They are resistant to wear and maintenance-free. The hubs of the ELPEX-B couplings are made of high-quality cast iron or steel. The torque is transmitted by a flexible tire reinforced with a cord ply.

Your benefits at a glance

Compensation of very large shaft misalignments
Independent of direction of rotation (suitable for reversing operation)
The rubber tire can be replaced easily without the need to move the coupled machines
Easy mounting on the shafts is possible with taper bushes

Made in Germany, worldwide in use

Mining and Cement: crushers
Steel Production: shears, straightening machines, reversing rolling mills, pilger rolling mills
Power Generation: air condensers
Chemicals and Pharmaceuticals: driers, lauter tuns, mixers, agitators, reactors
Pulp and Paper: wastewater purification plants
Food and beverage: lauter tuns, reactors, agitators
Sugar: diffusers, sugar cane mills

Did you know?

Instead of the standard rubber tire, a chloroprene rubber tire is available. This option is labeled FRAS, i.e. fire-resistant and anti static.
