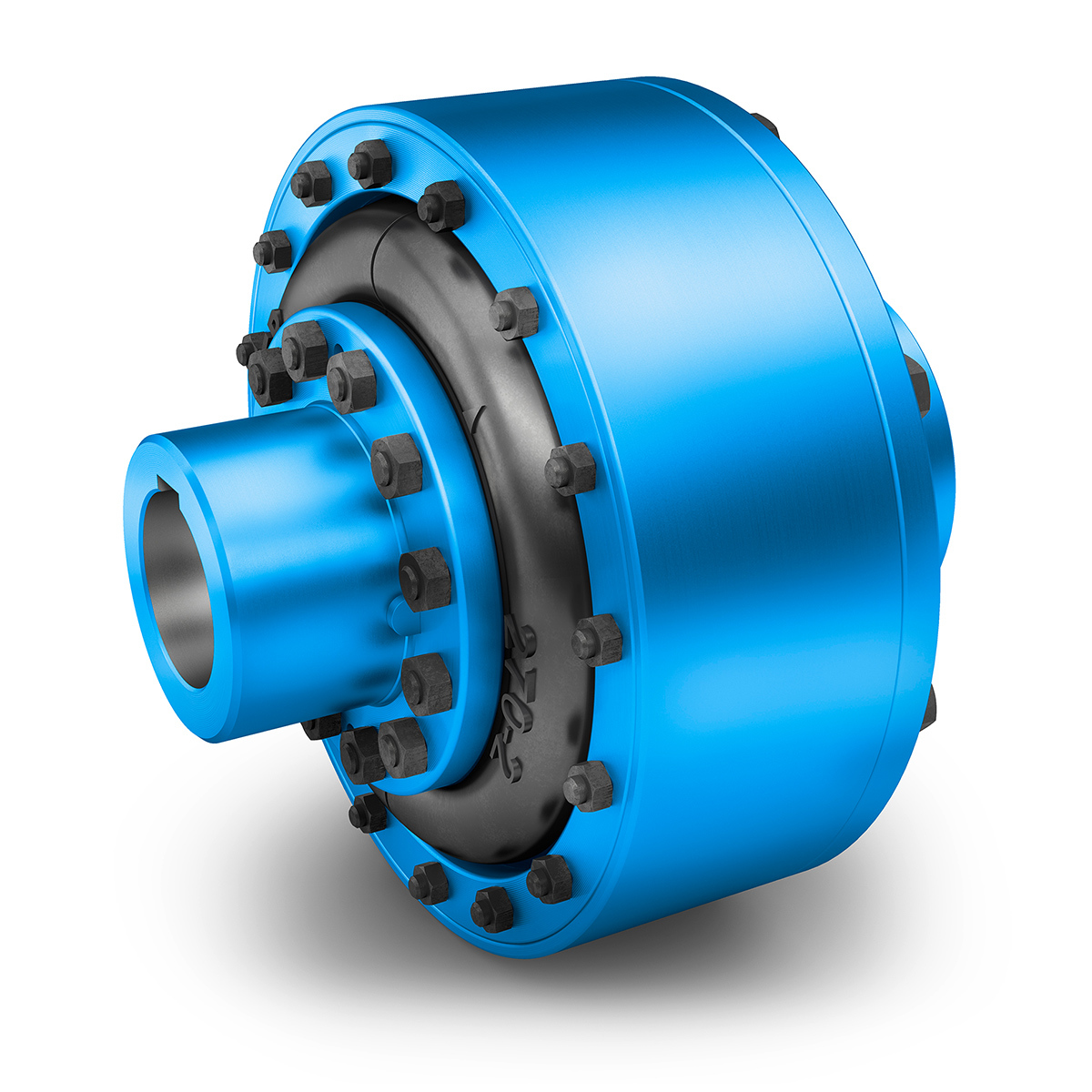

Highly flexible, backlash-free tire coupling
Nominal torque range from TKN = 1,600 Nm up to 90,000 Nm with 9 sizes
Temperature range: from –40 °C to +80 °C
​

Flexible and adaptable

Owing to its low torsional stiffness and damping properties the ELPEX® coupling is very well suited to connecting machines with considerably non-uniform torque characteristics. Types with a fail-safe device between the flexible rings ensure emergency operation if the flexible rings are destroyed.

Your benefits at a glance

Suitable for high dynamic loads
Good damping properties
Available as a fail-safe coupling
Available as a shaft and flange coupling
Designs available that comply with API 610 and API 671
Made in Germany, worldwide in use

For drives with periodically excited systems, such as

Internal combustion engines
Piston compressors
Piston pumps
For drives subject to high shock loads or large shaft misalignments, for example in

Compressors
Excavators
Shredders
Moreover suitable for

Mining and Cement: tube mills, vertical mills, crushers
Steel Production: shears, straightening machines, reversing rolling mills, pilger rolling mills
Sugar: sugar cane mills

Did you know?

The ELPEX coupling’s transmission characteristics are determined essentially by the flexible rings. These flexible rings are manufactured from a natural rubber blend with a multi-ply fabric lining. They are split so that they can be changed without having to move the coupled machines.
