Robust and proven a million times

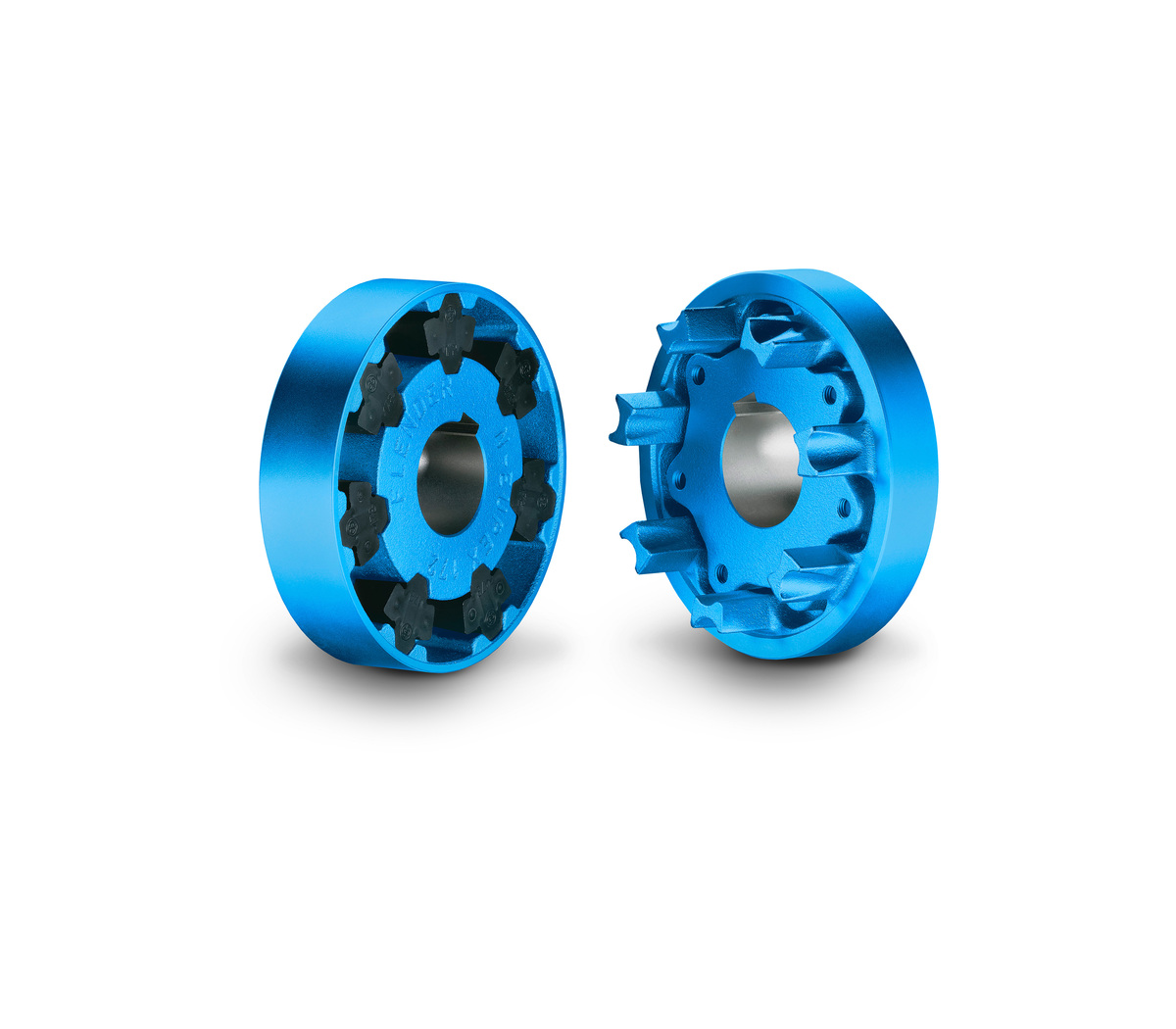

Damping shaft coupling that can be used universally to compensate for shaft misalignments
Nominal torque range from TKN = 60 Nm up to 21,200 Nm with 19 sizes
Temperature range: from –50 °C to +100 °C

N-EUPEX DS® couplings do not have a fail-safe device, allowing positive disconnection of the input and output side upon failure of the flexible elements due to overload or wear. Then, the metal parts of the DS coupling can rotate freely in opposite directions.

Your benefits at a glance

Can be used universally and combined with many components of the N-EUPEX line
Disconnects driver and driven machine if elastomer fails
No fail-safe principle operation (the load is disconnected)
Suitable for use in potentially explosive environments; certified according to
2014/34/EU (ATEX)
Maintenance-free even if used in explosive atmospheres
Many types are available ex stock

Established as an industrial standard, worldwide in use

Mining and Cement: heating technology
Oil and Gas: pumps, fans, compressors, air condensers
Power Generation: pumps, fans, compressors, air condensers, water turbines
Chemicals and Pharmaceuticals: driers, lauter tuns, pumps, fans, compressors, mixers drives, agitators, reactors
Pulp and Paper: wastewater purification plants
Water and Wastewater: aerators
Food and Beverage: lauter tuns, reactors, agitators, mixers

Did you know?

Original FLENDER® elastomers ensure the optimal operation of your system. The flexible elements in the N-EUPEX DS series are subject to compression and bending forces. If the flexible elements are irreparably damaged, the metal parts turn against one another without contact, and the power transmission is separated. Fitting new flexible elements will make the coupling usable once more.
