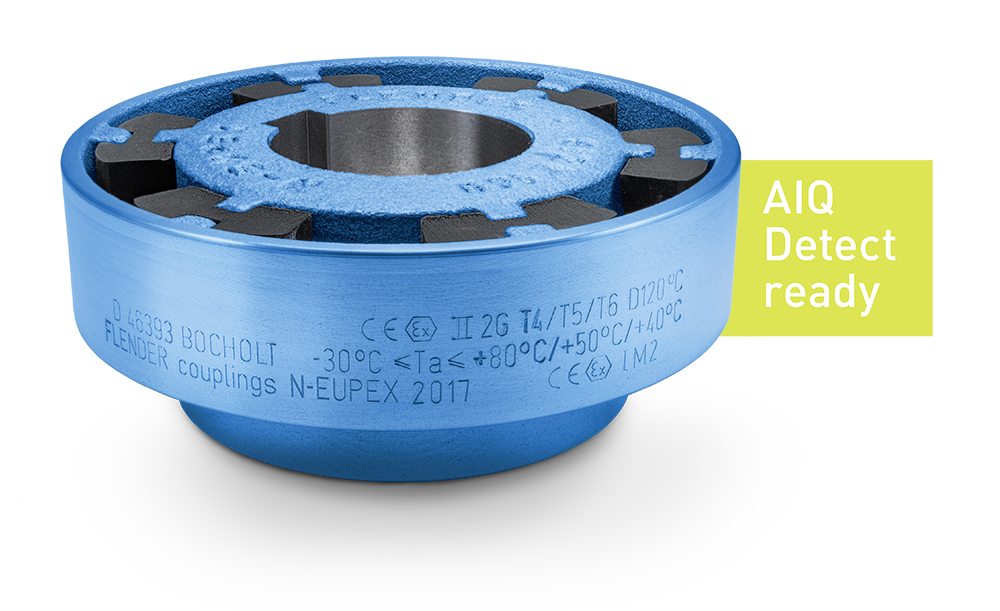

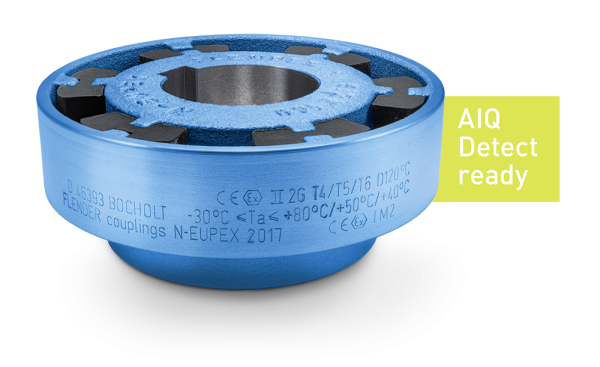

Damping shaft coupling that can be used universally to compensate for shaft misalignment
Nominal torque range from TKN = 12 Nm up to 85,000 Nm with 23 sizes
Temperature range from –50 °C to +100 °C

New in 2022: The types ERN, B, DKS and TPU elastomers – download the Techreport now

Find out more about the three couplings N-EUPEX ERN with torque limiter for more safety in your drivetrain, N-EUPEX B plus clamping element for increased serviceability and the shortest double-cardanic N-EUPEX DKS on the market in the TechReport: flender.com/n-eupex-2022

High-quality solutions for your plant

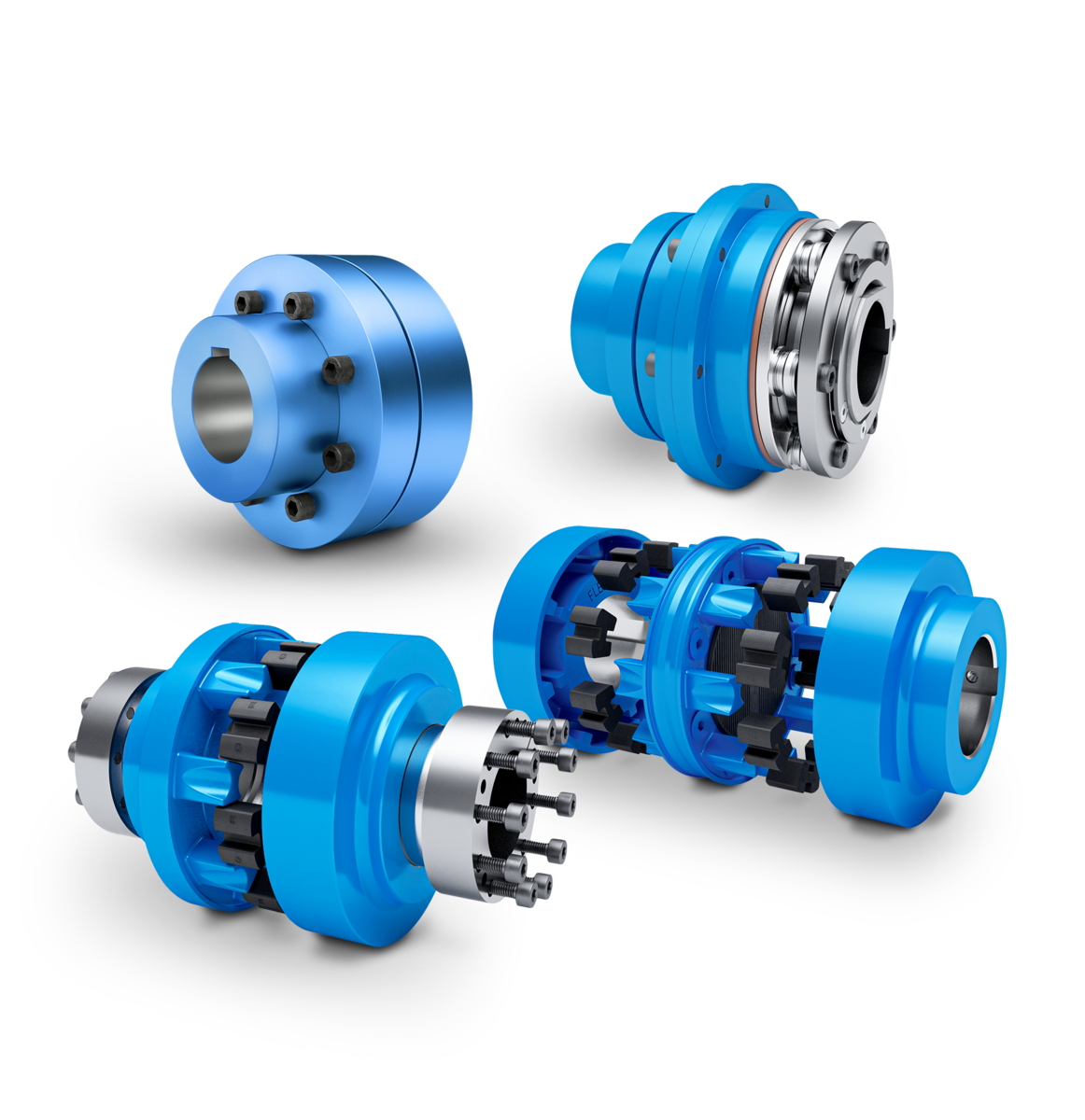

A wide variety of N-EUPEX® types offer optimum coupling solutions for every challenge. Couplings with a double-cardanic design, with torque limiter, with clamping element or short design enrich the extensive modular system of pin couplings. The flexible modular system provides sustainable options that optimize machines and systems and reduce maintenance. A high combination diversity and flexibility is ensured by diverse components.

Robust and proven a million times

Due to their torsional flexibility, N-EUPEX® couplings can move critical torsional vibrations away from the operating area of mechanical equipment in such a way that no negative effects on the drive train are to be expected. N-EUPEX couplings are made of high-quality cast iron. The flexible elements made of synthetic rubber (NBR) are available in different degrees of hardness for many applications. In addition, elastomers made of thermoplastic polyurethane (TPU) and of NBR with fabric inserts for increased load-bearing capacity are offered. Metal pins and flexible elements are designed so that no wear occurs when they are properly fitted.

Your benefits at a glance

Fail-safe for maximum operational reliability
Three-part type suitable for plug-in assembly and simplified replacement of elements
Choice of elastomer hardness to suit various applications
Suitable for use in potentially explosive environments; certified according to
2014/34/EU (ATEX)
High degree of availability of parts ex stock

Established as an industrial standard, worldwide in use

Mining and Cement: heating technology
Oil and Gas: pumps, fans, compressors, air condensers
Power Generation: pumps, fans, compressors, air condensers, water turbines
Chemicals and Pharmaceuticals: driers, lauter tuns, pumps, fans, compressors, mixers, agitators, reactors
Plastic and Rubber: single- and double-screw extruders
Pulp and Paper: wastewater purification plants
Water and Wastewater: aerators
Food and Beverage: lauter tuns, reactors, agitators, mixers

Did you know?

Original FLENDER® elastomers ensure the optimal operation of your system. The flexible elements of the N-EUPEX coupling are subject to compression. If the flexible elements are irreparably damaged, the hub parts come into contact with metal. This “emergency operation capability” is required, e.g., in the case of fire pump drives.
