Description

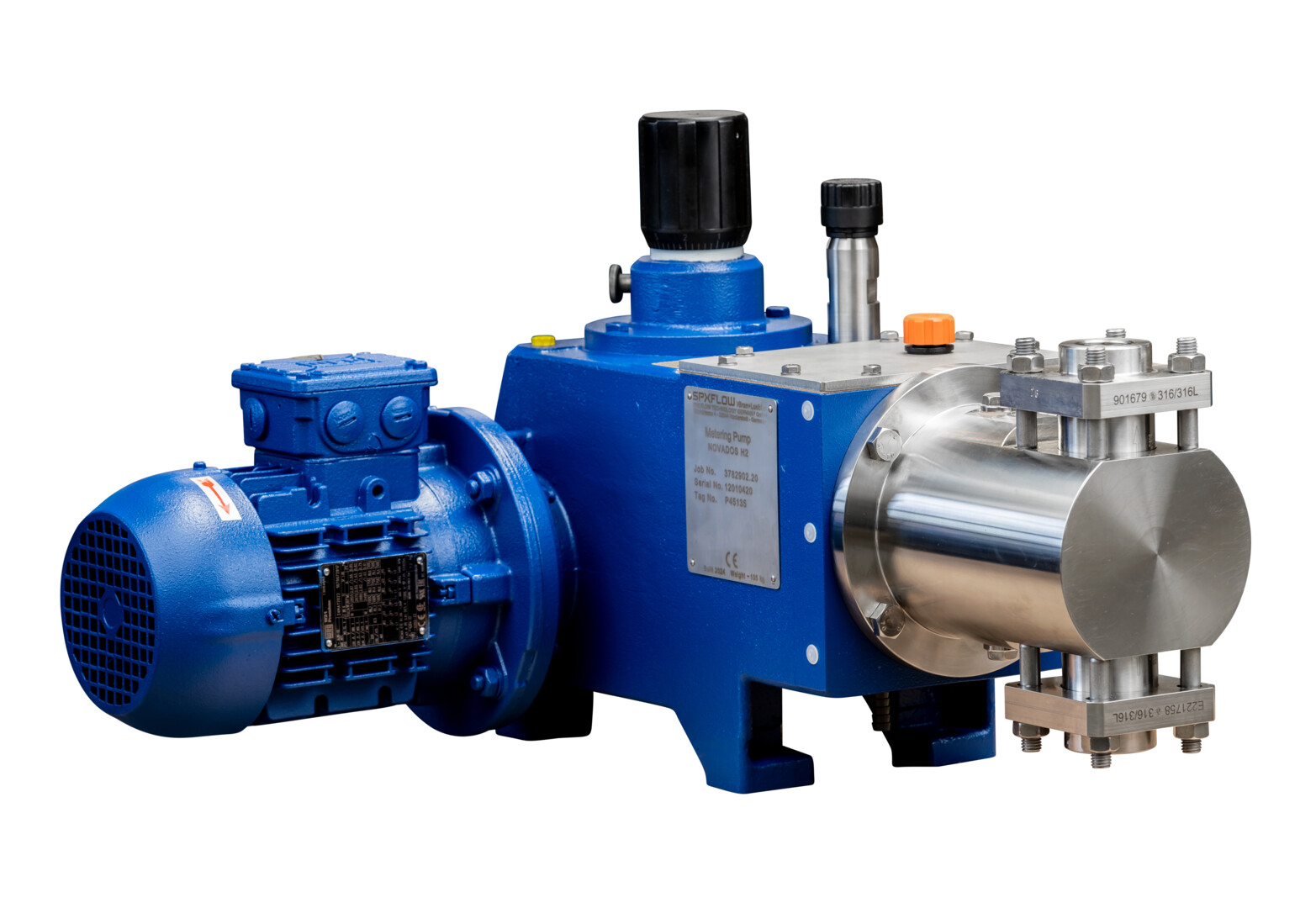

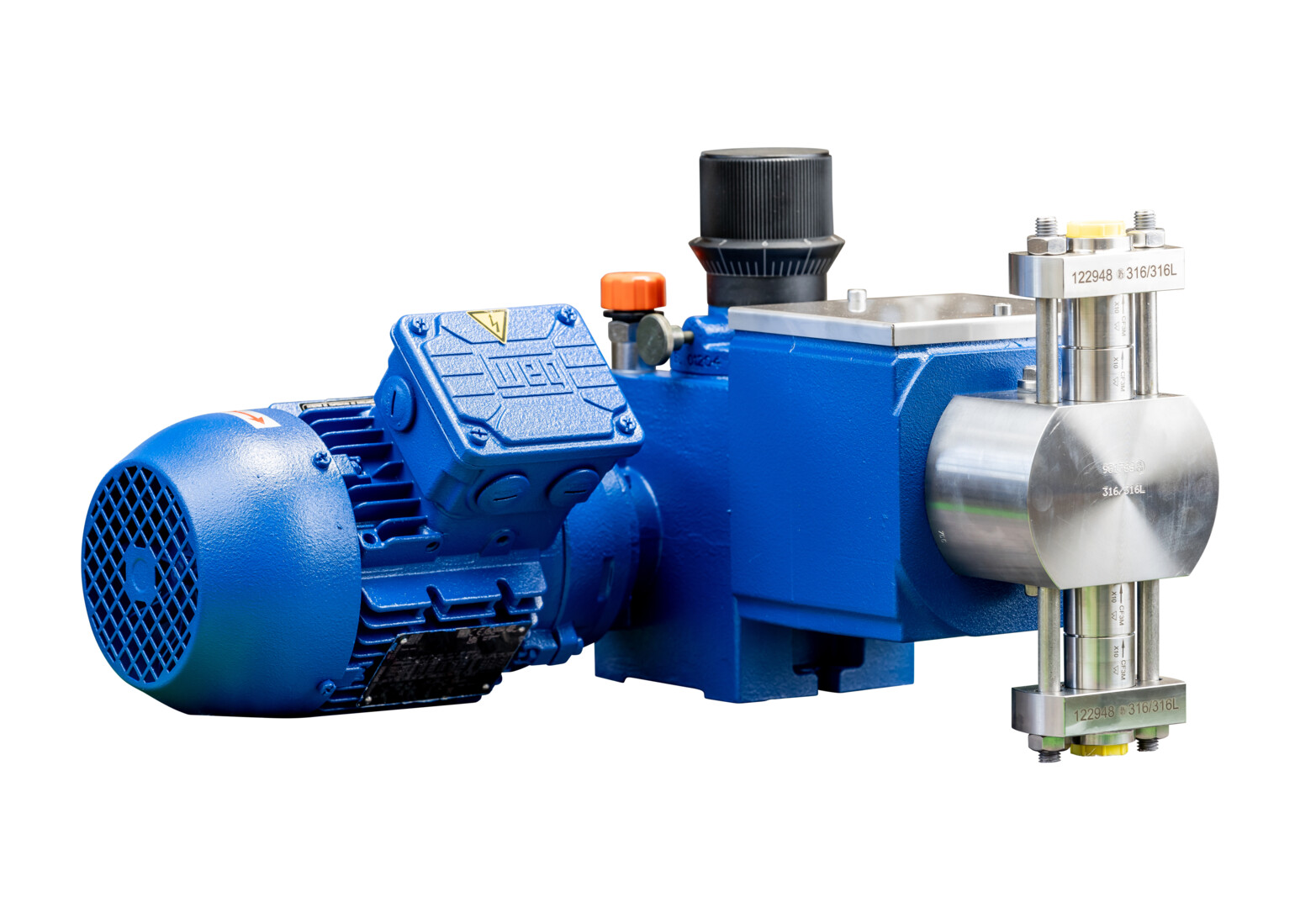

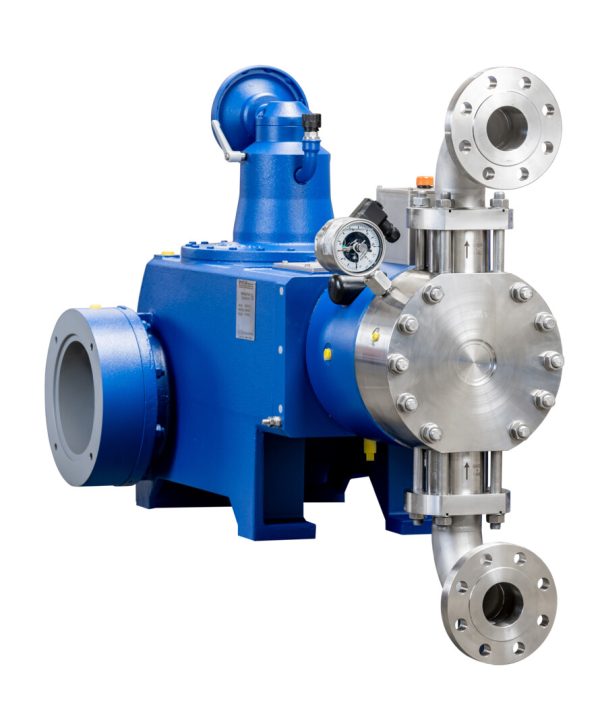

NOVADOS Pump Family Overview
Flexible Pumping Solutions
The NOVADOS series includes leak-free diaphragm and plunger pumps. Multiple gear sizes can be combined to meet specific flow rate and pressure requirements.
Technical Specifications
Materials of Liquid-Wetted Components
- Housing: Stainless steel 1.4571 / 1.4462, PVC, or PP
- Diaphragm: PTFE or stainless steel 1.4310
- Plunger: Stainless steel or ceramic
- Optional upgrades: Super Duplex, Hastelloy, Titanium, and more
Pump Gear Design
- Worm gear with various reduction ratios
- Splash lubrication system
- Adjustable stroke length via eccentric Z-shaped crankshaft
Flow Rate Control
- Manual, electric, pneumatic, or speed-variable control systems
Drive Configuration
- Electric motor with fixed or variable speed
- Custom drive options available upon request
Operating Conditions
Installation Limits*
- Hazardous area: Zone 1 IIC T4 (Zone 22 upon request)
- Ambient temperature: -40°C to +50°C
- Fluid temperature: -40°C to +150°C
*Limit values—please specify actual conditions in your inquiry.
Key Benefits
Performance & Adaptability
- Hermetically sealed construction prevents leakage
- Independent stroke length adjustment per pump head
- Variable speed drive for flexible flow rate control
- Automation improves production efficiency
- Modular design allows easy expansion or reconfiguration
- Systems can include up to 12 pump heads
