Description
Product Type(s) : Metering Pumps
Description :Nearly all gear sizes in the NOVADOS series can be combined for process and metering pumps to achieve the required flow rate and pressure parameters.

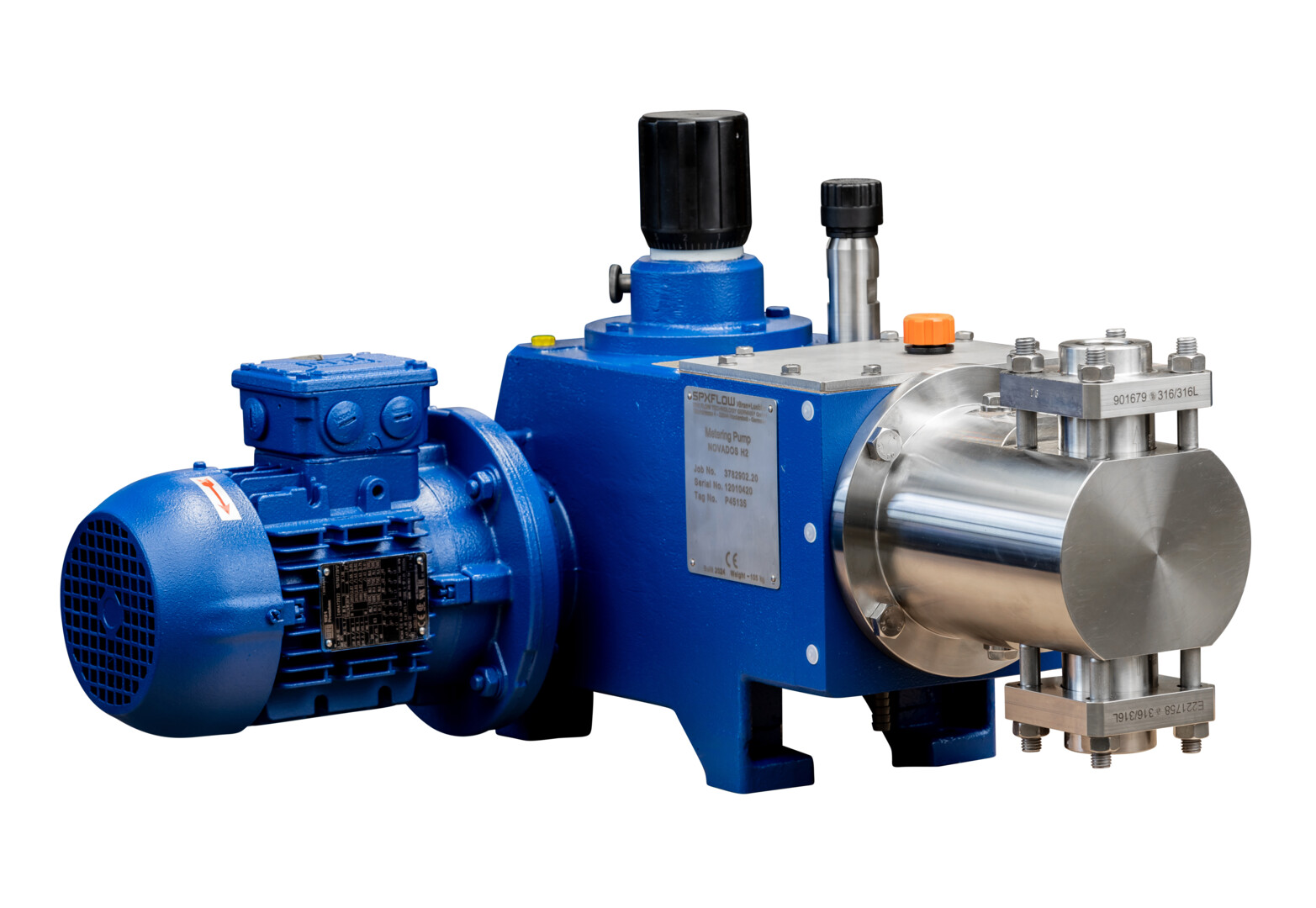

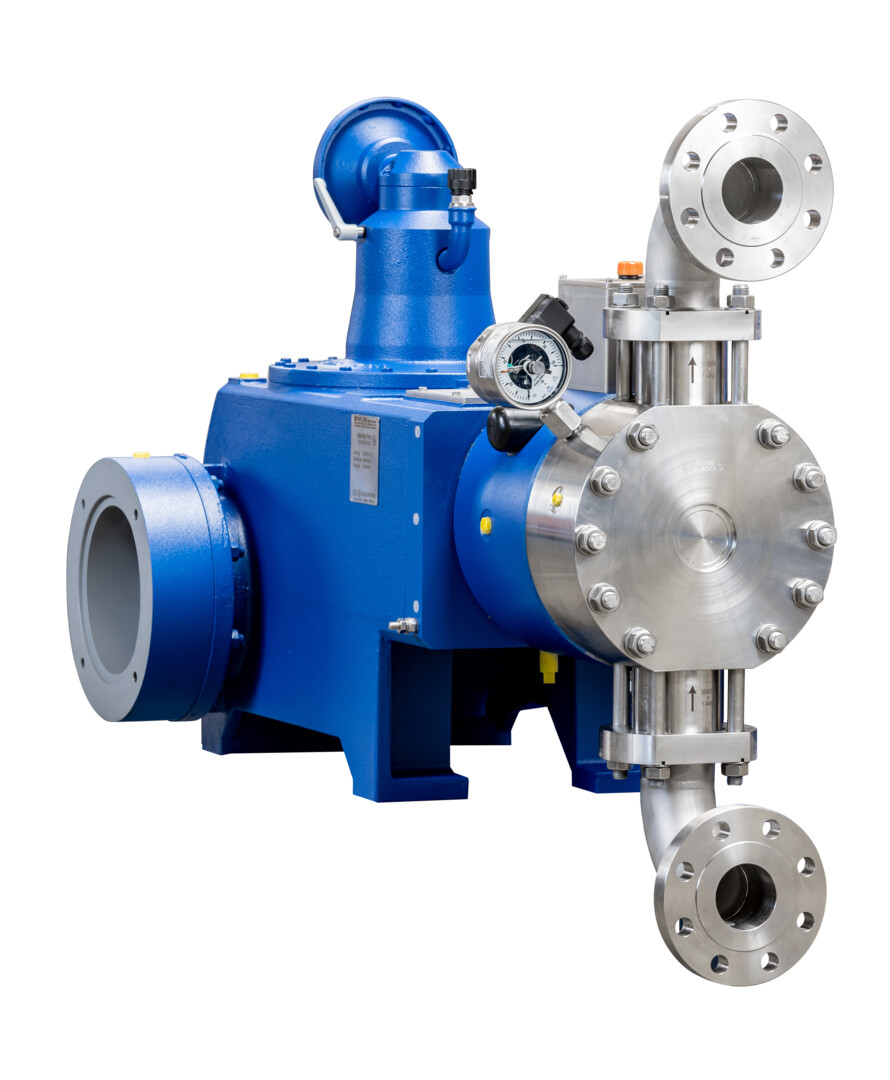

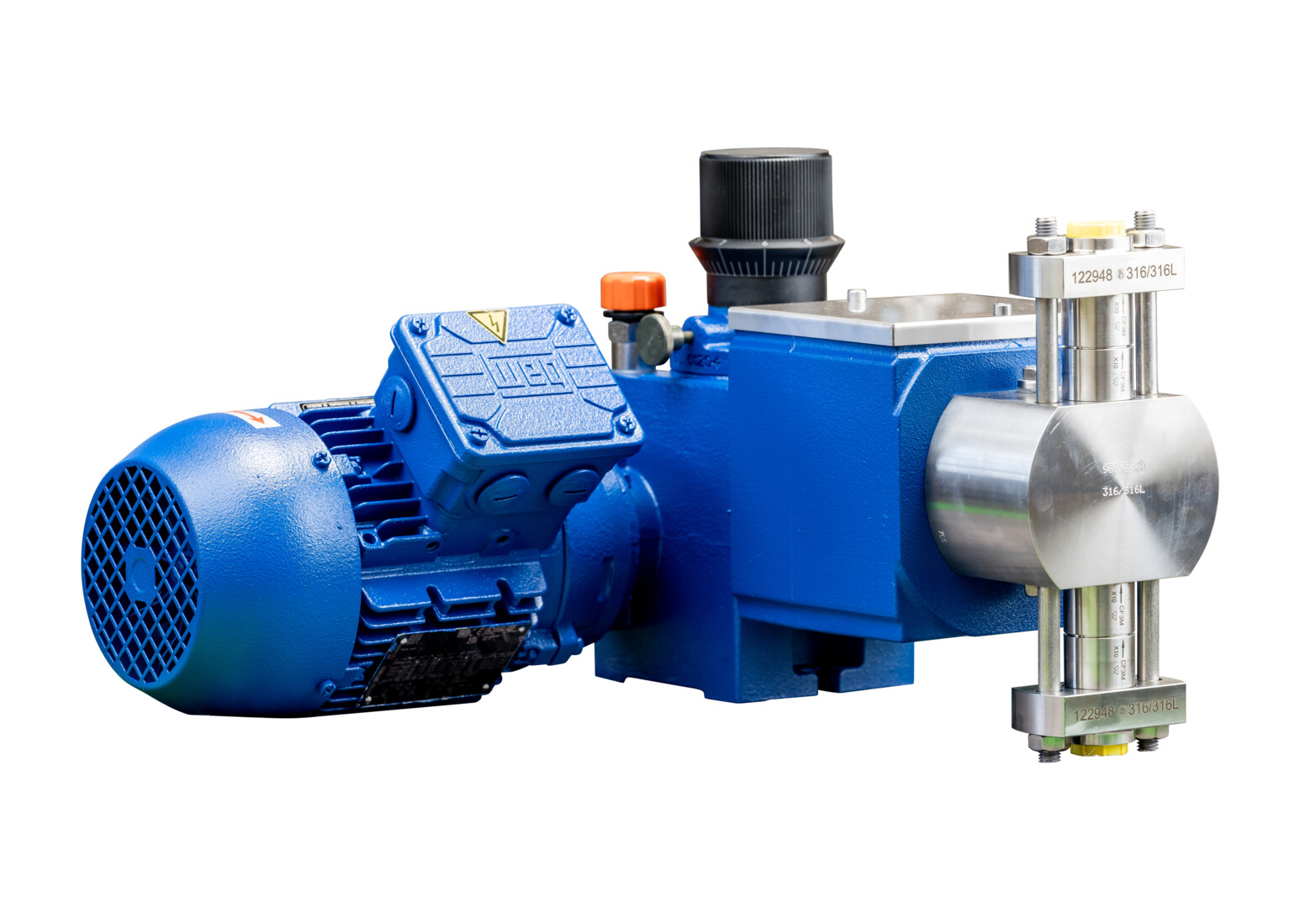

NOVADOS Pump Family Overview
Flexible Pumping Solutions
The NOVADOS series includes leak-free diaphragm and plunger pumps. Multiple gear sizes can be combined to meet specific flow rate and pressure requirements.
Technical Specifications
Materials of Liquid-Wetted Components
- Housing: Stainless steel 1.4571 / 1.4462, PVC, or PP
- Diaphragm: PTFE or stainless steel 1.4310
- Plunger: Stainless steel or ceramic
- Optional upgrades: Super Duplex, Hastelloy, Titanium, and more
Pump Gear Design
- Worm gear with various reduction ratios
- Splash lubrication system
- Adjustable stroke length via eccentric Z-shaped crankshaft
Flow Rate Control
- Manual, electric, pneumatic, or speed-variable control systems
Drive Configuration
- Electric motor with fixed or variable speed
- Custom drive options available upon request
Operating Conditions
Installation Limits*
- Hazardous area: Zone 1 IIC T4 (Zone 22 upon request)
- Ambient temperature: -40°C to +50°C
- Fluid temperature: -40°C to +150°C
*Limit values—please specify actual conditions in your inquiry.
Key Benefits
Performance & Adaptability
- Hermetically sealed construction prevents leakage
- Independent stroke length adjustment per pump head
- Variable speed drive for flexible flow rate control
- Automation improves production efficiency
- Modular design allows easy expansion or reconfiguration
- Systems can include up to 12 pump heads
