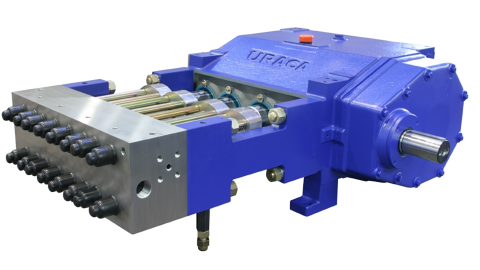

Quadruplex Plunger Pump P4-70

The sturdy reciprocating pump type P4-70 is available in various drive and liquid end configurations. Main applications are in industry and service sector. Process pump KD719 with customized liquid end is used for handling thin liquids to pasty substances with aggressive, neutral, abrasive, hot or toxic properties. Minimum energy consumption and low-wear operation due to high mechanical efficiency, based on a sophisticated pump conception.

Description

Technical Specifications

  • Power rating: up to 440 kW
  • Operating pressure: up to 2800 bar
  • Flow rate: 23-910 lpm
  • Dimensions: 1391x1118x516 mm
