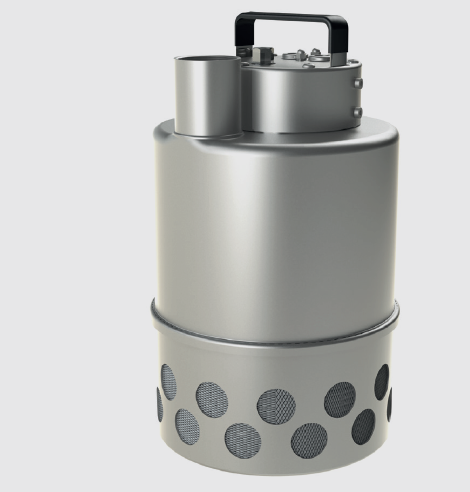

SPRING

Home>Submersible Pumps>Arven>SPRING

Pump head: 8,0 mt ÷ 16,5 mt
Delivery: 9,0 m3/h ÷ 24,0 m3/h
Rated output: 0,25 kW (0,33 Hp) ÷ 1,1 kW (1,5 Hp)

Categories ,

Additional information

Description

APPLICATIONS:

• Swimminig pools emptying operations.
• Water-play.
• Alternated continue service

DESIGN ENGINEERING:

• Double chamber electric pump (motor, mechanical seal)
• Oil bath motor (biodegradable and dielectric) for coolin
and bearing lubrication
• Sealing ring – engine face
• Oil bath mechanical seals
• Permissible draught of water: 5 mt
• IP 68 protection class
• Class F insulation
• Max pumped liquid temperature: 35°C
• Version Single phase: 220-277V/50Hz or 220-277V/60Hz with built in thermal protection and permanent capacitor
Three phase: 220-277V/50Hz or 380-480V/50Hz and
220-277V/60Hz or 380-480V/60Hz with overload protection care of the user
• Motor power: from 0,25 kw (0,33 Hp) to 0,45 kw (0,6 Hp) only single phase version from 0,6 kw (0,8 Hp) to 1,1 kw (1,5 Hp) single phase and trhee phase version
• Automatic single phase version with floater or manual single
version, without floater
• Standard cable features
Single phase: 10 meters H07RN-F for the standard version (automatic-manual)
Three phase: 10 meters H07RN-F
Customised voltage and frequency rating available on demand



COMPONENTS :

Pos. COMPONENTI                                 MATERIALE
COMPONENTS                                      MATERIALS
A Carcassa esterna                                   Acciaio inox aisi 304 Din 1.4301
External housing                                    Stainless steel
B Girante
Impeller		 Spring              Tecnopolimero
30-60               Tecnopolymer
Spring              Acciaio inox aisi 304 Din 1.4301 80-100-150       Stainless steel
C Albero (lato pompa)
Shaft (pump side)		 Spring              Acciaio inox aisi 303 Din 1.4305 30-60               Stainless steel
Spring              Acciaio inox aisi 316 Din 1.4401 80-100-150       Stainless steel
D Tenuta meccanica Mechanical seal Lato pompa     Carburo di silicio
Pump face        Silicon carbide
Lato motore    Anello di tenuta nbr
Motor face        Nbr seal ring
E O-ring                                                    Nbr
G Porta motore                                         Acciaio inox aisi 304 Din 1.4301
Motor holder                                          Stainless steel
H Cassa motore                                        Acciaio inox aisi 304 Din 1.4301
Motor housing                                        Stainless steel
I Coperchio + maniglia Cover + handle Spring              Tecnopolimero
30-60               Tecnopolymer
Spring              Acciaio inox aisi 304 Din 1.4301 80-100-150       Stainless steel
L Diffusore
Diffuser		 Spring              Acciaio inox aisi 304 Din 1.4301 30-60               Stainless steel
Acciaio inox aisi 304 con
Spring              rivestimento in gomma Hnbr
80-100-150       Din 1.4301 /Stainless steel coated Hnbr rubber
Q Filtro                                                      Acciaio inox aisi 304 Din 1.4301
Filtro                                                       Stainless steel

The performance data holds true for liquids with a p = 1,0 kg/dm3 density and a v= 1 mm2/s viscosity.

DATI ELETTRICI – ELECTRICAL DATA DATI IDRAULICI – HYDRAULIC DATA
Codice Modello Phase Volt Hz P ass. I ass. P nom. Capacitor m3/h 0 2,4 4,5 7,2 9 10,5 15 18 24
Code Model kW A kW HP µF VC l/min. 0 40 75 120 150 175 250 300 400
SNG0302 SPRING  30 M AUT 1 ~ 230 50 0,5 2,2 0,25 0,33 8 450 8 6,6 5,2 2,9 1,5 – – – –
SNG0303 SPRING  30 M 1 ~ 230 50 0,5 2,2 0,25 0,33 8 450 8 6,6 5,2 2,9 1,5 – – – –
SNG0602 SPRING  60 M AUT 1 ~ 230 50 0,7 3 0,45 0,6 10 450 10 8 6,8 4,3 3 1,5 – – –
SNG0603 SPRING  60 M 1 ~ 230 50 0,7 3 0,45 0,6 10 450 10 8 6,8 4,3 3 1,5 – – –
SNG0605 SPRING  60 T 3 ~ 400 50 0,7 1,4 0,45 0,6 – – 10 8 6,8 4,3 3 1,5 – – –
SNG0802 SPRING  80 M AUT 1 ~ 230 50 1,1 4,5 0,6 0,8 16 450 11,5 10,5 9,5 7,5 6,2 5 1,5 – –
SNG0803 SPRING  80 M 1 ~ 230 50 1,1 4,5 0,6 0,8 16 450 11,5 10,5 9,5 7,5 6,2 5 1,5 – –
SNG0805 SPRING  80 T 3 ~ 400 50 0,9 2,1 0,6 0,8 – – 11,5 10,5 9,5 7,5 6,2 5 1,5 – –
SNG1002 SPRING  100 M AUT 1 ~ 230 50 1,5 6,5 0,75 1 20 450 14,5 13,5 12 10,5 9,5 8 4 1,5 –
SNG1003 SPRING  100 M 1 ~ 230 50 1,5 6,5 0,75 1 20 450 14,5 13,5 12 10,5 9,5 8 4 1,5 –
SNG1005 SPRING  100 T 3 ~ 400 50 1,3 2,2 0,75 1 – – 14,5 13,5 12 10,5 9,5 8 4 1,5 –
SNG1502 SPRING  150 M AUT 1 ~ 230 50 2 10,6 1,1 1,5 30 450 16,5 15,5 14,5 13 12,1 11,2 9 7 1,5
SNG1503 SPRING  150 M 1 ~ 230 50 2 10,6 1,1 1,5 30 450 16,5 15,5 14,5 13 12,1 11,2 9 7 1,5
SNG1505 SPRING  150 T 3 ~ 400 50 1,8 3,3 1,1 1,5 – – 16,5 15,5 14,5 13 12,1 11,2 9 7 1,5



MODELLO MODEL DIMENSIONI POMPA PUMP DIMENSION
A B C D E F G
SPRING 30 M 1”1/4 154 41 324 303 125 132
SPRING 60 M/T 1”1/4 154 41 324 303 125 132
SPRING 80 M/T 1”1/2 212,4 89,7 400 369 160 202,4
SPRING 100 M/T 1”1/2 212,4 89,7 400 369 160 202,4
SPRING 150 M/T 2” 212,4 89,7 440,2 408,2 160 202,4
MODELLO MODEL DIMENSIONI SCATOLA PACKING DIMENSION DIMENSIONI PALLET PALLET DIMENSIONS
L
mm		 M
mm		 N
mm		 Peso Weight kg R
mm		 S
mm		 T
mm		 NR
scatole		 PESO
Kg
SPRING 30 M 190 230 410 5,5 800 1200 1790 80 450
SPRING 60 M/T 190 230 410 6,2 800 1200 1790 80 506
SPRING 80 M/T 260 300 530 9,0 800 1200 1220 24 241
SPRING 100 M/T 260 300 530 11,0 800 1200 1220 24 289
SPRING 150 M/T 260 300 530 18,0 800 1200 1220 24 457
